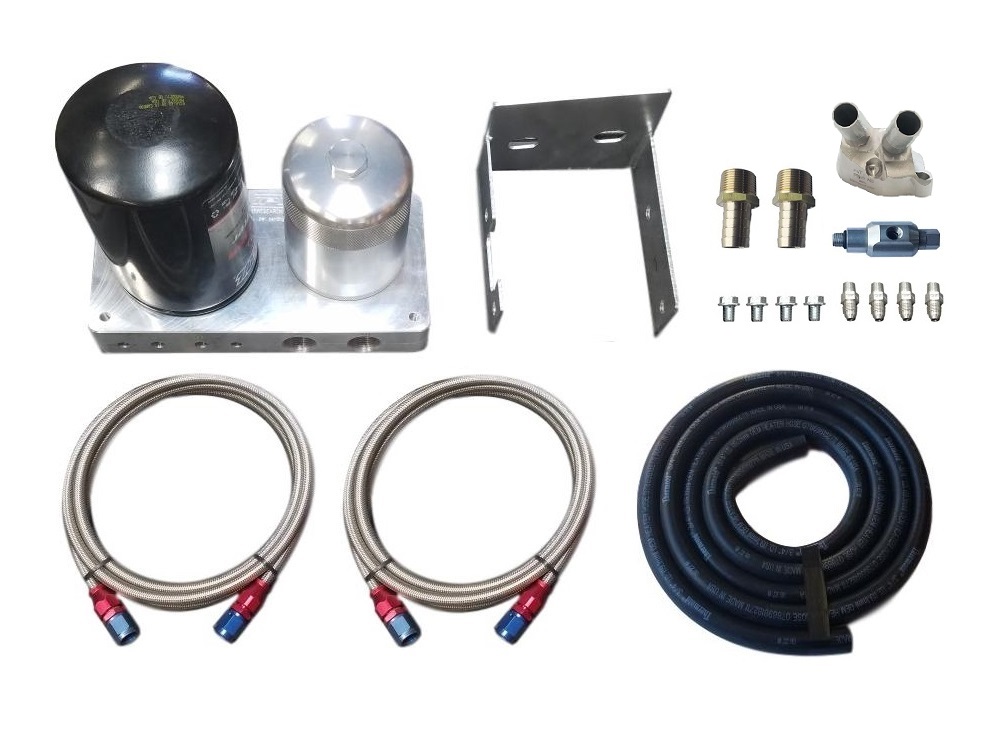

IPR Dual Bypass Oil Filter and Coolant Filter

The IPR DFS is our latest design combining a 2 micron bypass oil filter with our High Flow Coolant filter in one package. The IPR high flow coolant filter is capable of filtering 100% inline after the OEM oil cooler when it's configured with IPR's coolant manifold, external oil cooler kit or inline with any 3/4" heater hose. The large 3/4" fittings and stainless steel serviceable coolant filter is capable of filtering out your entire coolant system very quickly. Tests have shown over 4GPM at idle and over 16GPM at normal operating conditions. We went a step further and designed from the ground up a swivel fitting that keeps your bypass oil filter supply line out of the way, out of sight. All other branded oil bypass systems require a aluminium oil filter cap/oil filler cap and a fitting mounted on top of the cap which requires the line to be removed or may be in the way everytime you need to access the oil filter and or to fill your oil opening the oil filler cap.

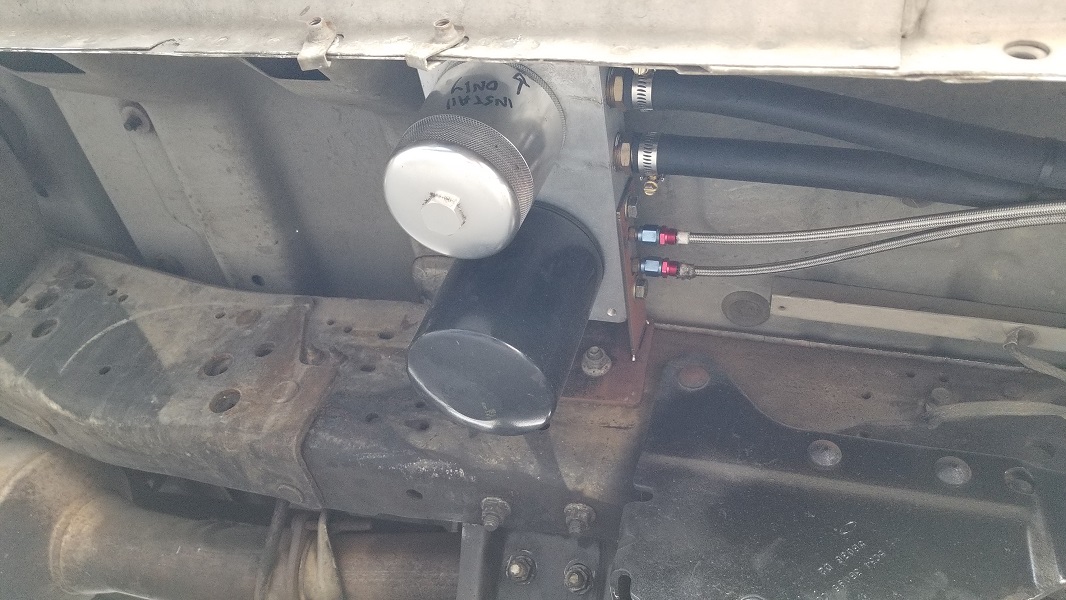

The DFS system is mounte under the passenger side floor board on the outer frame rail.
