IPR External Oil Cooler Kit for Ford 6.0 Powerstroke

Check out the youtube video of Carli Suspension's test truck sponsored by IPR. This test truck is equipped with an IPR External Oil Cooler Kit and a IPR Extreme Duty EGR Cooler, engine modifications performed by IPR includes ARP head studs, rebuilt cylinder heads with OEM Ford head gaskets. This is a testament to the reliability of IPR's products and services. Carli suspension has tortured this test truck through parts of the infamous Baja 1000 from Baja California through the Mexican desert and various locations through the Southwestern desert testing Carli's suspension products

See youtube video on IPR External Oil Cooler Temp Spread

See youtube video on IPR External Oil Cooler Temp Spread Towing

Benefits and FAQ regarding IPR's External Oil Cooler Kit

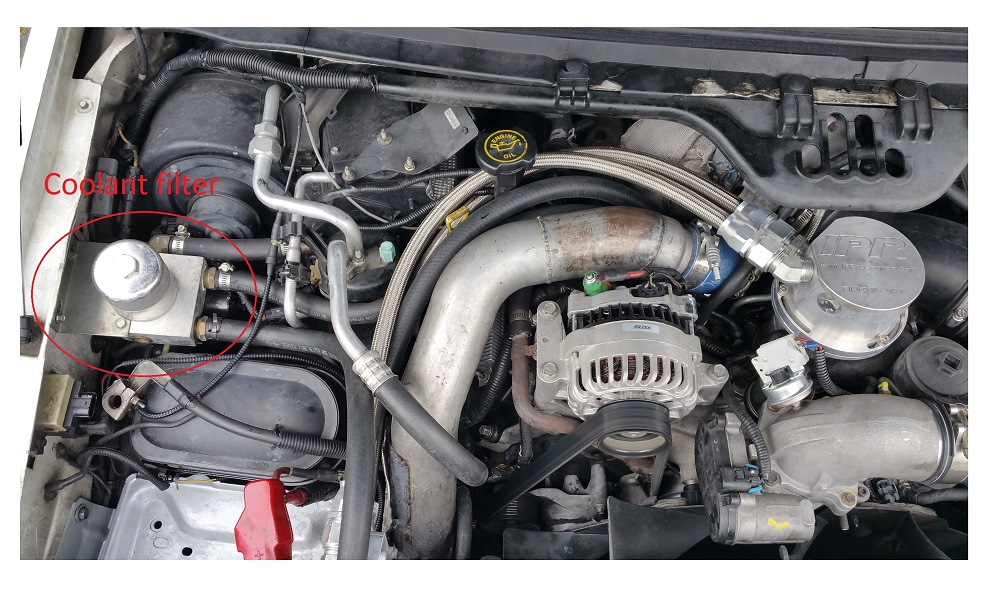

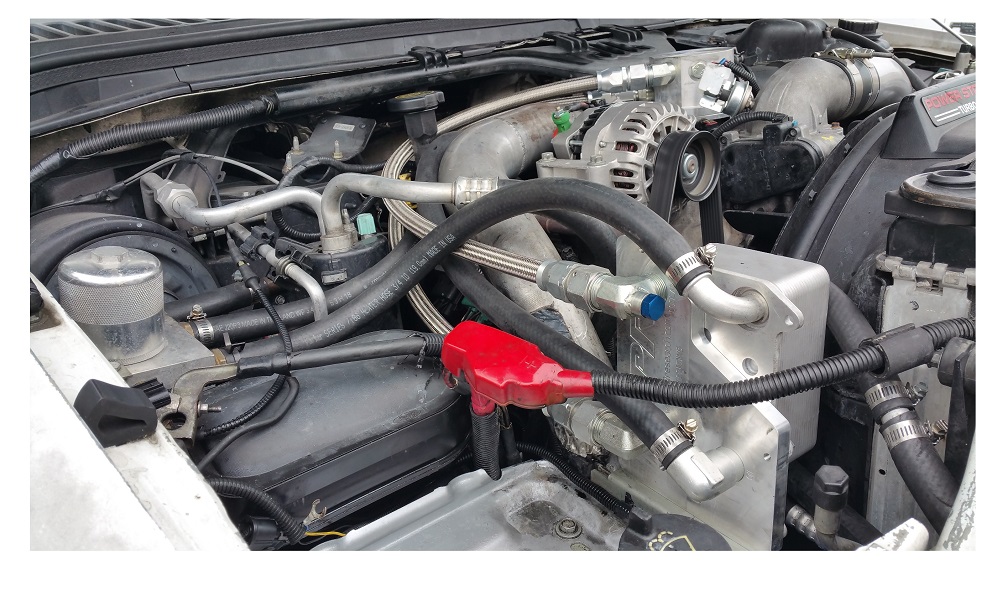

IPR solved 2 major problems with the Ford 6.0 oil cooler failure issues. First, by removing the internally mounted OEM oil cooler and relocating it next to the battery we were able to reduce the amount of time/labor it would normally take to service the oil cooler. You can swap out a brand new oil cooler in as little as 20 minutes should you need to replace it for any reason. Second, by mounting the OEM oil cooler externally we were able to filter the coolant 100% before any coolant ever enters the oil cooler.

Q. What happens to the OEM oil cooler that was mounted inside the engine?

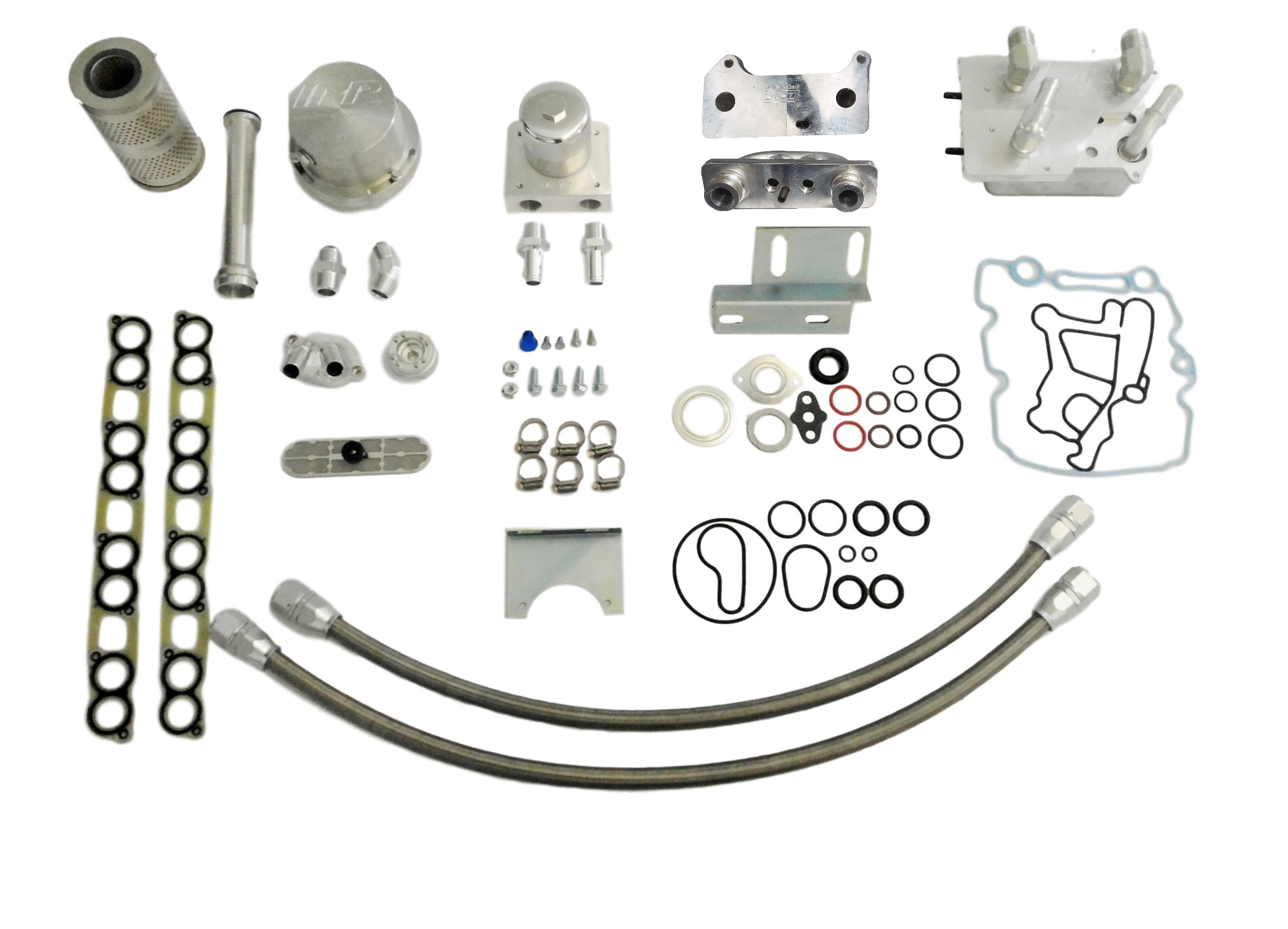

A. The OEM oil cooler is replaced by IPR's patent pending bypass manifold. The bypass manifold is a bolt in replacement that has 3/4" passages that allow the coolant and oil to continue it's OEM design pathways and is then routed out to IPR's billet aluminum oil filter cap, out to the oil cooler and back in to supply the high pressure oil pump.

Q. Where is the oil filter located?

A. The oil filter is located in the factory oil filter housing just like the OEM oil filter.

Q. Where can I buy oil filter if I need to service my truck?

A. Oil filters can be purchased from IPR through our website or you can purchase them at any NAPA auto parts or local auto parts store. They are over the counter common filters manufactured by WIX.

Q. Do I have to remove the oil hoses off the filter cap everytime I change my oil filter? Seems like a hassle.

A. The 2 oil hoses do need to be removed to replace the oil filter, however it's a small inconvenience, in most cases you can loosen the 2 oil hoses in less than 1 minute. It's a small inconvenience once every oil change interval.

Q. Why do I have to purchase the IPR External Oil Cooler Kit when I can just install a coolant filter in my truck with a OEM oil cooler mounted internally inside the engine.

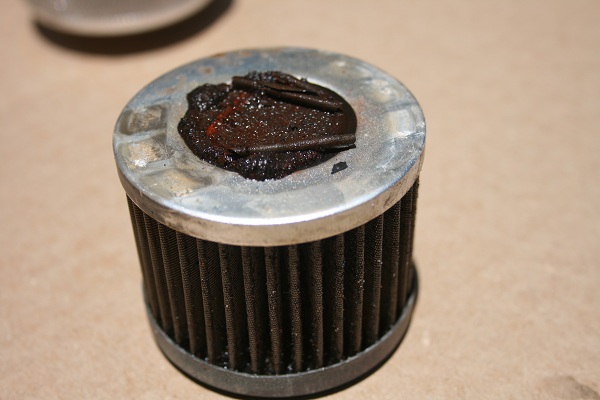

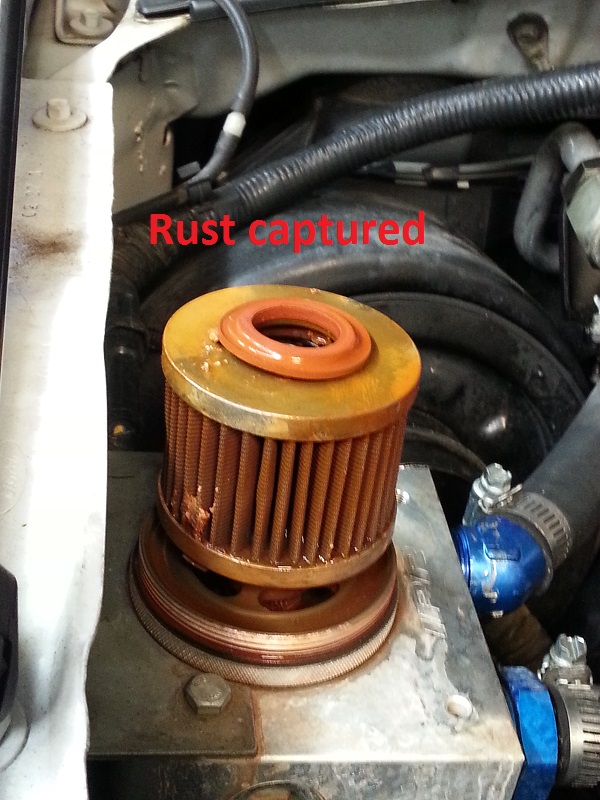

A. Unfortunately the design of the OEM internally mounted oil coolers gets clogged up by contaminants such chemical breakdown, cast iron corrosion fallout and casting sand from engine maufacturing and the coolant supply for the OEM oil cooler is fed directly from the engine block into the oil cooler. There is no way to intercept the coolant "before" it enters the OEM internally mounted oil cooler. All aftermarket coolant filters only filter coolant after contaminants have passed through your OEM oil cooler.

Q. The External Oil Cooler Kit is expensive it's out of my budget.

A. Considering a new OEM internally mounted oil cooler cost about $350-$410, intake gasket kit $90 and labor to remove/install a new oil cooler can cost from $700-$900. The next time you need to replace your clogged oil cooler the kit will pay for iteself and more.

Q. Why do I have to purchase the IPR External Oil Cooler Kit when I can just install a coolant filter in my truck with a OEM oil cooler mounted internally inside the engine and flush out the coolant system?

A. Unfortunately the design of the OEM internally mounted oil coolers gets clogged up by contaminants such chemical breakdown, cast iron corrosion fallout and casting sand from engine maufacturing and the coolant supply for the OEM oil cooler is fed directly from the engine block into the oil cooler. There is no way to intercept the coolant "before" it enters the OEM internally mounted oil cooler. All aftermarket coolant filters only filter coolant after contaminants have passed through your OEM oil cooler. In cases where a OEM oil cooler has ruptured where coolant and oil has mixed into the coolant system it is extremely difficult to flush out all the oil residue, unfortunately a new OEM oil cooler must be installed in order to flush out the mess, this will lead to contamination of the brand new oil cooler that was just installed.

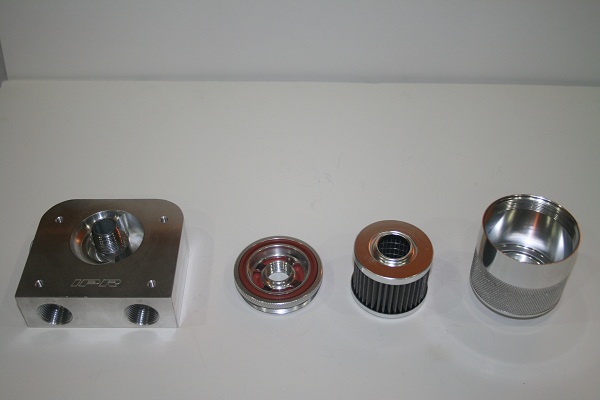

Q. I see that IPR offers a High Flow or CF2 Coolant Filter, is this filter included in the kit?

A. The IPR High Flow Coolant Filter or CF2 Coolant filter is an upgraded filter you can purchase as an upgrade option with your IPR External Oil Cooler Kit. IPR does recommend upgrading to either coolant filters for maximum longetivity.

Q. Will I have to purchase any other components to make this kit work in different climates?

A. No additional components will need to be purchased. Other aftermarket kits in the market require you to purchase a thermostat kit that can cost up to $350 for cold climate use and a possibilty that you'll need to replace your transmission cooler due to fitment issues that you may experience based on the build date and equipment on your truck. IPR require no additional parts to make the oil cooler kit operate properly.

Q. What is the advantage of IPR External Oil Cooler Kit in comparison with a air cooled type kit mounted in front of the truck?

A. There are many reasons why a water cooled system is much more effective. We will go into detail on this subject.

1. Air cooled oil cooler cores require a substantial amount of space in front of a vehicle for it to work efficiently. In most cases an air cooled oil cooler will restrict air flow to your radiator, AC condensor and radiator. Some manufacturers recommend that their oil cooler cores be mounted behind the AC condenser. The large air cooled oil cooler restricts enough air flow to the condensor that it will  diminish AC performance as well as radiator and intercooler performance. Mounting the air cooler behind the AC condensor also requires the use of additional bracketry, hardware, drilling , disassembling the front end of the vehicle, relocating the transmission cooler, purchasing and relocating the power steering cooler, discharge AC, and recharge AC upon installation which will require an additional 4-8 extra labor cost which can cost well over $1000.

2. Air cooled oil coolers require air flow (increased vehicle speed) and outside air temperature to operate efficiently. In an extreme condition when a vehicle is towing a heavy load up a grade on a hot day, the vehicle speed is limited due to the icreased load from towing and climbing resulting in less air flow and hotter outside air temps. The problem is exaggerated when a heavy duty fan clutch is installed which will cause parasitic power loss and increased load on the engine also resulting in decreased fuel economy.

Water cooled oil coolers rely on the OEM radiator as a heat exchanger to cool the oil down. The radiator used in the front of the vehicle is the largest heat exchanger on the vehicle which is very efficient. IPR External Oil Cooler Kits require no additional fans or components.

3. Cold weather performance with water cooled oil cooler is also more efficient during warm up. The same coolant used to cool the oil down in hot weather is also used to heat the engine oil up to normal operating temperatures much more effectively and more consistently. The OEM thermostat will remain closed to aid the coolant in reaching normal operating temps much sooner than an air cooler. During cold climates an air cooler will constantly cool oil temps as it’s trying to warm up. Some manufacturers would recommend a thermostat kit which can cost an extra $350 and more plumbing/fittings and labor to install.

4. Water cooled is the future! The new Powerstroke 6.7 utilizes coolant to control excessive temps on the transmission, oil cooler and intercooler.
